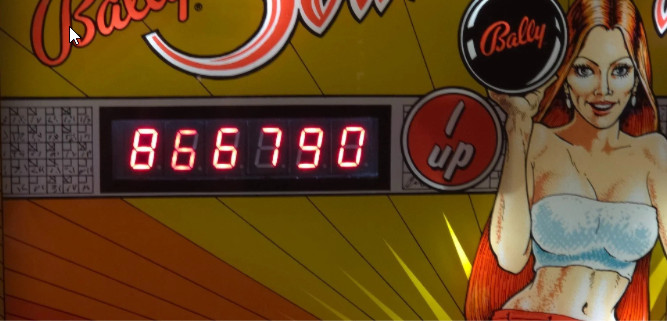

Bally / Stern 6-Digit Red LED Pinball Display (AS-2518-21, AS-2518-15, A-434) For Sale

6-Digit LED Replacement Display — Rev 1.4

Pre-assembled, tested, and ready to install. No soldering required.

Upgrade your classic Bally or Stern solid-state pinball machine with a modern 6-digit LED replacement display.

The Logic Level Electronics Rev 1.4 display is designed as a direct replacement for the original Bally AS-2518-21 / AS-2518-15 and compatible Stern 6-digit display assemblies. It provides a crisp LED readout while operating from the machine's low-voltage supply. The replacement display itself does not require the original high-voltage supply used by plasma displays.

Each board is assembled and function-tested before shipment.

Rev 1.4 Features & Improvements

• Factory-Style Connector Orientation: Rev 1.4 uses the same physical connector orientation as the original display, allowing the factory harness to connect in its original Logic: The primary logic circuitry uses surface-mount components soldered directly to the PCB, eliminating IC sockets and their additional mechanical and electrical contact points.

• Expanded Diagnostic Test Points: Dedicated test pads provide convenient access to the major display signals for troubleshooting with a multimeter, logic probe, or oscilloscope:

  • BCD1, BCD2, BCD3, BCD4

  • LD (Load)

  • BL (Blanking)

  • Segments A through G

  The ground test point is positioned near the edge of the PCB for convenient connection of a meter or oscilloscope ground clip.

• Documented Pin Connections: Connector and signal functions are identified on the PCB, and a complete pinout reference diagram is provided for troubleshooting and service. On Rev 1.4, part of the main connector legend is partially obscured by the installed connector, so the supplied diagram provides a clear reference for each connection.

• Black LED Light Shrouds: Custom black shrouds surround the LED digits to reduce unwanted light bleed and help produce a clean, defined appearance behind the backglass.

• Reinforced Header Pads: The primary connector pins use enlarged solder pads to provide additional mechanical support at the harness connection points.

• Replaceable LED Digit Modules: Individual LED digit modules can be replaced if necessary, allowing a failed digit to be serviced without replacing the entire display board.

• Plug-and-Play Installation: Designed to work with the existing Bally/Stern MPU signals and factory wiring harness. No additional power supply or machine modifications are required when installed in a compatible, factory-configured machine.

Direct Replacement For

• Bally AS-2518-21

• Bally AS-2518-15

• Stern A-434

• Stern DA-100

• Stern A-472

Designed for classic Bally and Stern solid-state machines using compatible 6-digit display assemblies.

Installation

Always turn off and unplug the machine before installing or removing a display.

Rev 1.4 uses the factory-style connector orientation. Before applying power, verify that the connector is properly aligned and fully seated.

A connector pinout and diagnostic reference diagram is provided for installation, service, and troubleshooting.

Game Compatibility

Compatibility Note: Please verify the display part number and connector configuration in your machine before ordering. The game compatibility list below is provided as a reference. Individual machines may have been modified or fitted with different display hardware during their service life.

If you are unsure whether this display is compatible with your machine, please contact Logic Level Electronics before ordering.

7 DISPLAYS REQUIRED

Bally: Six Million Dollar Man

5 DISPLAYS REQUIRED — FULL 6-DIGIT BACKBOX REPLACEMENT

Bally: Black Jack, Dolly Parton, Eight Ball, Embryon, Evel Knievel, Freedom, Future Spa, Gold Ball, Harlem Globetrotters, Hotdoggin', KISS, Lost World, Mata Hari, Mystic, Night Rider, Nitro Groundshaker, Paragon, Playboy, Power Play, Rolling Stones, Silverball Mania, Space Invaders, Star Trek, Strikes & Spares, Supersonic, Viking, Voltan

Stern: Ali, Cosmic Princess, Dracula, Galaxy, Hot Hand, Lazer Lord, Lectronamo, Magic, Memory Lane, Meteor, Nugent, Pinball, Stars, Stingray, Trident, Wild Fyre

4 DISPLAYS REQUIRED

Bally: Grand Slam

2 DISPLAYS REQUIRED

Bally: Elektra, Medusa, Mr. & Mrs. Pac-Man, Vector

Stern: Lightning

1 6-DIGIT DISPLAY REQUIRED

Bally: Beat the Clock, Black Pyramid, BMX, Centaur, Centaur II, Cybernaut, Eight Ball Champ, Eight Ball Deluxe, Fathom, Fireball Classic, Fireball II, Flash Gordon, Frontier, Kings of Steel, Lady Luck, Rapid Fire, Skateball, Speakeasy, Spectrum, Spy Hunter, X's & O's, Xenon

Stern: Big Game, Catacomb, Cheetah, Dragonfist, Flight 2000, Freefall, Iron Maiden, Nine Ball, Orbitor 1, Quicksilver, Seawitch, Split Second, Star Gazer, Viper

About This Display

Designed, assembled, and tested by Logic Level Electronics LLC in St. Marys, Ohio.

If you have a compatibility, installation, or troubleshooting question, please feel free to reach out.

Not affiliated with, endorsed by, or sponsored by Bally, Stern, or any trademark holders referenced above. Part numbers and game titles are used solely for compatibility identification.

---

---
