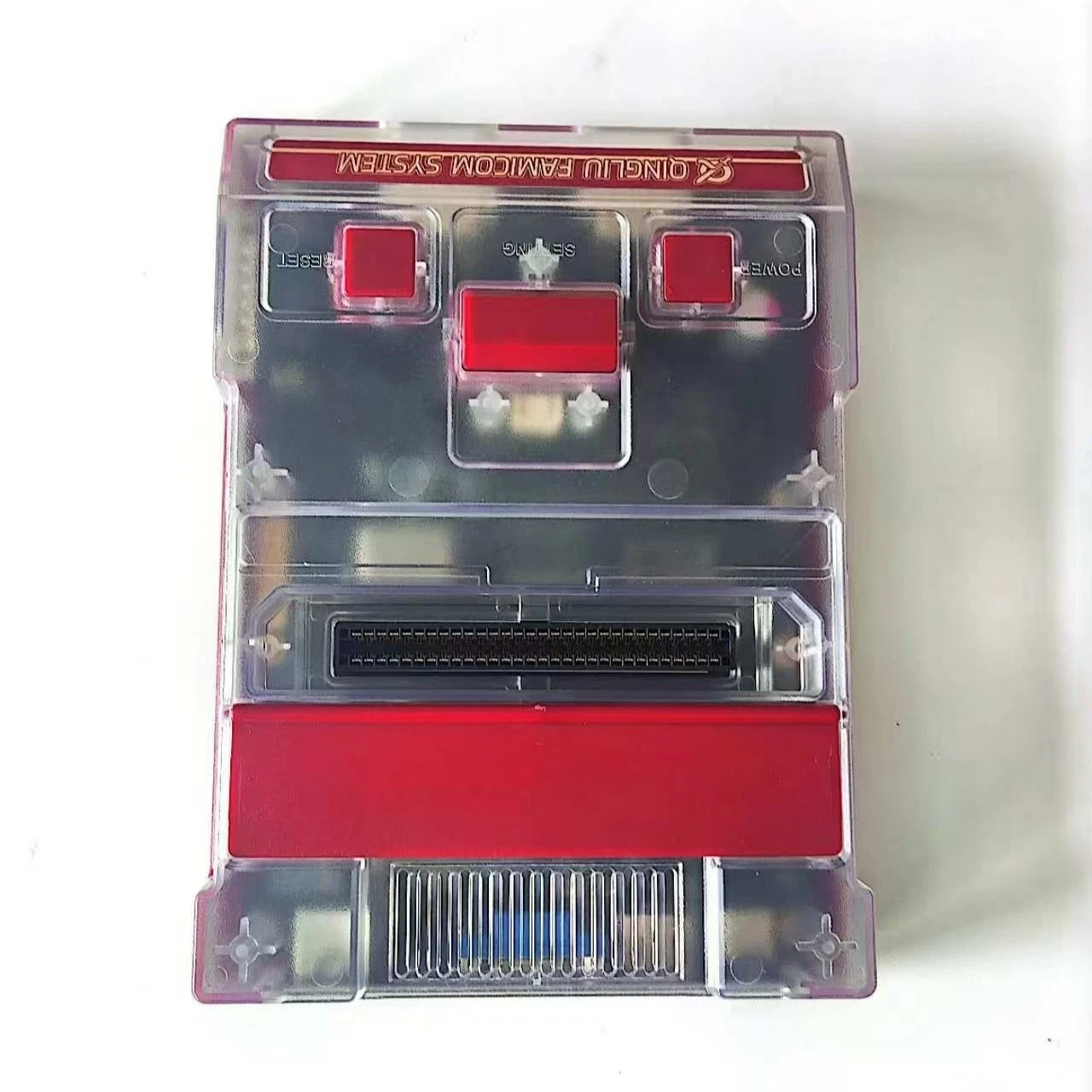

FPGA Famicom NES Console RGB HDMI AV VGA Dendy Compatible 60Hz For Sale

This is a Dendy‑compatible Famicom clone console. It uses an Altera FPGA chip to replace the original PPU, while retaining the rest of the original circuitry for maximum compatibility. The Dendy CPU runs in 60Hz overclocked mode to deliver smooth gameplay equivalent to NTSC systems.
Enjoy thousands of classic NES / Famicom titles on your modern TV.Features plug‑and‑play HDMI, VGA, RGBS, S‑Video and CVBS (AV) outputs, and supports original game cartridges.Comes with a 1‑year warranty.
✨ Key Features
Multi-Interface Output

• High-definition: HDMI / VGA (supports 1280×1024 / 640×480 resolutions + scanline effect)
• Low-definition: RGBS / S-Video / CVBS (AV) via Sega Saturn SS standard port, simultaneous output without switching

Color & Customization

• 4 palettes supported: FCEUX / NTSC / PAL / PC-10
• All settings (palette, scanline, resolution, reset) adjustable via 1P controller hotkeys

Full Compatibility

• Works with original NES/Famicom cartridges, EverDrive N8 & clones
• Built‑in 60‑pin Famicom cartridge slot. Works with original Famicom cartridges, EverDrive N8 & clones.72‑pin NES cartridges require a separate 72‑to‑60‑pin adapter (NOT included in this listing).
• Supports NES Zapper light gun, disk drive system & 15P expansion peripherals

User-Friendly Design

• 9~12V 1~2A wide-range power supply (no polarity needed, rectifier built-in)
• 7P NES/AV Famicom standard controller interface, includes 2 controllers
• 4-layer gold-plated PCB for stable performance

🎮 Controller Hotkeys (Hold 3 seconds)

• Select + Start + Up: Switch color palette
• Select + Start + Right: Toggle scanlines
• Select + Start + Left: Switch resolution
• Select + Start + B: Reset console

📦 Package Options

Console Only

• Console unit (customizable shell color)
• No controllers, no power adapter, no cables included

Full Set

• Console unit (customizable shell color)
• 9~12V power adapter
• 2× compatible controllers
• Signal connecting cable

🛡️1-Year Warranty

• We provide 1-year warranty for this console (non-human-induced damage only)
• Covers manufacturing defects and hardware failures under normal use

🚚 Shipping & Delivery

• Processing Time: Orders usually ship within 48 hours after payment (excluding weekends and holidays)
• Estimated Delivery: Approximately 2 weeks to most countries
• Tracking number and pre-shipment test video of the console will be provided after shipment.

---

---
